Medeco High Security Deadbolt Locks
Looking to install high security locks in your home, building, office or institution. SOS Locksmith has a wide varieties of high security locks in NYC and we do all the installation. Today we focus on Medeco deadbolt lock series that offers a variety of exceptional locks which focuses on security issues ranging from key control, high security, Grade 1 & 2 offerings and eCylinders for both residential and commercial use to provide customers with optimal security and to deter unwanted individuals from gaining entry. Standard locks utilize a single locking point, while high security locks such as Medeco utilize multiple locking technologies. For all Medeco locks in NYC Contact SOS Locksmith we are Medeco Security Center distributor in NYC
Different Types of Medeco High Security Deadbolts Locks:
Maxum Deadbolt Lock
The Maxum deadbolt is UL listed for use on fire doors having a rating up to three hours, an ANSI/BHMA 165.5 2001 Grade 1 Certification for auxiliary locks and associated products, an ANSI/BHMA A156.30 Level A Certification on the cylinder assures patent protected key control and physical strength and can be incorporated into existing master key systems. It also has security features to protect against drill, wrench, ice pick, kick-in, hammer, bumping, and prying attacks, solid brass construction provides high quality and long cylinder life. The Maxum Deadbolt is specially designed to accommodate both mortise and drive-in face applications for greater flexibility and ease of installation. A large thumbturn provides ease of use for physically challenged individual. A keys may be integrated with Hybrid proximity head for greater system retrofit. Double cylinder captive thumbturn safety options are available with the maxum deadbolt and is available in the following finishes:
05 – Bright Brass
06 – Satin Brass
09 – Antique Brass
10 – Satin Brass Blackened
11 – Bright Bronze
12 – Satin Bronze
13 – Oil Rubbed Bronze
18 – Bright Nickel
19 – Satin Nickel
20 – Antique Nickel
22 – Black
24 – Dark Bronze
25 – Bright Chrome
26 – Satin Chrome
And comes in three formats for the mechanical cylinder formats: BiLevel, Medeco X4 (SFIC only), and Medeco 3 . These features include, solid brass collar spins under pressure to prevent wrench attacks, large thumbturn provides ease of use by physically challenged individuals, steel shroud over bolt protects against “ice pick” type attacks, high security strike plate has a special box design with 2 inch screws that anchor the strike directly to the building structure behind the frame, preventing “kick-in” type attacks, hardened steel bolt and bolt throwing mechanism are surrounded by a heavy-gauge tubular steel housing for maximum resistance to crowbar attacks, and solid brass design is secured with high-tensile steel mounting bolts for maximum resistance against hammer and prying attacks. It also includes, utility patented key control, (for cylinders that incorporate the Medeco 3 design), provides protection against the unauthorized duplication of keys, a special elevating and rotating pin tumbler design, along with false slots on the bottom pins, mushroom top pins and a sidebar mechanism, work together, to provide superior pick resistance, angled cuts on the keys, along with fore and aft positioning, in the Medeco 3 design, provide added dimensions that dramatically increases key combinations and enables Medeco® to produce some of the largest master key systems in the industry, hardened steel inserts, positioned in critical areas of the cylinder, provide a high degree of drill resistance, and UL437 listing provides assurance that cylinders meet universal standards for drill and pick resistance and resistance against other types of forced attack.
Maxum Residential Deadbolt Lock
Maxum deadbolt is as much a work of beauty as it is a symbol of strength. It features a clean, concealed hardware design that is at home on any door, but behind the beauty is the true essence of security. The residential Maxum deadbolt incorporates every high security locking principle found in the legendary commercial version of the lock. With the highest quality materials and craftsmanship, this lock will provide protection and lasting beauty for generations. beautiful design. By redesigning the solid brass outer components to fit the flowing lines of residential architecture, Medeco has created the perfect combination of beauty and strength. Unmatched security behind its beauty, the Maxum is unapologetically a UL437 Listed, BHMA A156.5 Grade 1 Certified deadbolt, offering unmatched protection against unauthorized key duplication, bumping, attacks, picking, drilling, wrenching, kicking, or other physical abuse. A solid 1” hardened steel bolt in heavy gauge steel housing provides maximum defense against physical attack.
Features & Benefits:
Double-locking action makes Medeco locks virtually pickproof & bump proof
UL 437 high security deadbolt
One inch hardened steel bolt to resist sawing
Hardened steel inserts provide the utmost resistance to drilling
Solid brass collar spins under pressure so a wrench is ineffective
Solid brass construction secured with high-tensile steel bolts.

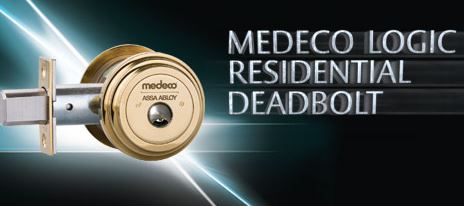

The Medeco Logic Residential Maxum deadbolt
The ultimate in protection for your home and family is the Medeco Maxum The Medeco Logic Residential Maxum deadbolt. It’s famous for its unique locking technology which resists forced entry, prying and hammering, and it is virtually impossible to defeat with picking tools. In addition to your security, Maxum keys will not be duplicated without Medeco’s authorization, and only authorized locksmiths are able to cut keys for a Maxum deadbolt. This assures you that you know exactly who has keys to your home.With the Medco Logic Residential Maxum deadbolt, you will have controlled access, accountability, electronic rekeying and scheduling, easy installation, physical security, efficient system management, and unlimited applications.
Classic Logic Features:
Lock / Cylinder Features
No wiring required—all power provided by the key
Indoor / outdoor use—stainless steel shell construction
2000 audit events
Unauthorized key list
Variety of retrofit cylinder formats
Key Features
Small, robust electronic key with stainless steel housing
All programming done at the key
Key holds operating and expiration schedule
Rechargeable battery, 500-800 openings per charge
Access: 5,000 cylinders maximum
Audit: 5,000 events maximum
Heavy duty stainless steel construction
Stand-alone, network, WEB and mobile programming options
Memory: Non-volatile Memory Storing 2000 Audit Events
Software: Local software client or web hosted option available
Power: Power supplied by the key, no hard wiring required
Sizes and Options:
Single Cylinder, 1 1/8″ faceplate, 2 3/8″ backset
Single Cylinder, 1 1/8: faceplate, 2 3/4″ backset
Single Cylinder, 1″ faceplate, 2 3/8″ backset
Single Cylinder, 1″ faceplate, 2 3/4″ backset
Single cylinder, drive in front, 2 3/8″ backset
Single cylinder, drive in front, 2 3/4″ backset
Single Cylinder, Less Bolt
Weather Resistant: Can be used in indoor or outdoor applications.
Physical Security: Drill and Tamper Resistant
Lockout: Lost or Stolen keys can be blacklisted so they will not function
Warranty: Medeco Security Locks warrants Medeco Logic products to be free of defects in material and/or workmanship for a period of two (2) years from date of original purchase.
Deadbolt Benefits:
Solid brass collar spins under pressure to prevent wrench attacks.
Large thumbturn provides ease of use by physically challenged individuals.
Steel shroud over bolt protects against “ice pick” type attacks.
High security strike plate has a special box design with 2” screws that anchor the strike directly to the building structure behind the frame, preventing “kick-in” type attacks
Hardened steel bolt and bolt throwing mechanism are surrounded by a heavy-gauge tubular steel housing for maximum resistance to crowbar attacks.
Solid brass design is secured with high-tensile steel mounting bolts for maximum resistance against hammer and prying attacks.
Technical Information:
Eight different finishes provide an extremely close color match with existing hardware.

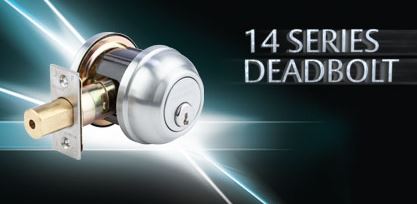

14 Series Deadbolt Lock
The Medeco 14 Series is a Grade 2 commercial deadbolt that provides an exceptional blend of cylinder options along with performance and value. When choosing a lock for your residence, it is an ideal choice for a wide range of commercial and heavy duty residential use and application. With quality and ease of use, installation is a cinch! Ideal applications include: office buildings, hospitals, schools, restaurants, apartments, and retail outlets. The 14 Series Deadbolt is available in:
05 – Bright Brass
09 – Antique Brass
26 – Satin Chrome
And available in the following mechanical cylinders:
BiLevel
Medeco X4
Medeco3
Benefits:
One inch throw bolt with hardened steel free spinning steel pin insert resists sawing
Bolt mechanism designed to adjust for both 2 3/8 inch or 2 3/4 inch backset, with 2 3/4 inch fixed backset also available, which provides greater flexibility and ease of installation
Free turning outer ring on collar resist wrenching attacks
Utility patented key control, (for cylinders that incorporate the Medeco 3 design), provides protection against the unauthorized duplication of keys
Medeco 3 cylinders include special elevating and rotating pin tumbler design, along with false slots on the bottom pins, mushroom top pins and a sidebar mechanism, work together, to provide superior pick resistance
Medeco 3 cylinders also include angled cuts on the keys, along with fore and aft positioning, in the Medeco 3 design, provide added dimensions that dramatically increases key combinations and enables Medeco® to produce some of the largest master key systems in the industry
Medeco 3 cylinders include hardened steel inserts, positioned in critical areas of the cylinder, provide a high degree of drill resistance
Medeco 3 cylinders UL437 listing provides assurance that cylinders meet universal standards for drill and pick resistance and resistance against other types of forced attack
Applications:
It is the ideal choice for a wide variety of commercial and heavy duty residential applications where consistent quality, ease of use and installation are required. Ideal applications include:
office buildings
hospitals
schools
restaurants
apartments
retail outlets
Warranty:
Warranted for two (2) years against manufacturer’s defects. See the Medeco® limited warranty for full details
Technical Information:
Five (5) different finishes provide a close color match with existing hardware
Cylinder options include key-in-knob in Medeco 3 , BiLevel, Medeco X4, Medeco Logic or Medeco³ Logic, and Medeco XT
SFIC cylinder options include Medeco X4 and Medeco XT

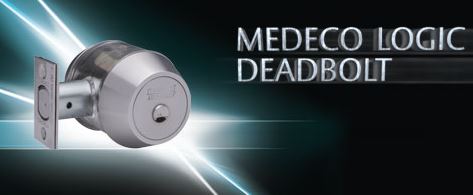

Medeco Logic Deadbolt Lock
The Medeco Logic Deadbolt is Medeco’s new Logic is Medeco’s new electromechanical product. It’s digital keys and digital cylinders offers customers most of the functionality of more sophisticated access control systems. Some of it’s features include audit trails, the ability to easily add and delete user keys, and scheduling. What many customers may be surprised to know is that unlike our other models, the Medeco Logic Deadbolt installs without any wiring, door or frame modifications, or additional hardware. Customers can even upgrade most doors in less than five minutes. Some other products within the Medeco Logic range are, Rim, Mortise, Key-In-Knob cylinders, deadbolts (both in commercial and residential styles) padlocks, and cam locks.
Lock / Cylinder Features:
No wiring required—all power provided by the key
Indoor / outdoor use—stainless steel shell construction
2000 audit events
Unauthorized key list
Variety of retrofit cylinder formats
Key Features:
Small, robust electronic key with stainless steel housing
All programming done at the key
Key holds operating and expiration schedule
Rechargeable battery, 500-800 openings per charge
Access: 5,000 cylinders maximum
Audit: 5,000 events maximum
Heavy duty stainless steel construction
Stand-alone, network, WEB and mobile programming options
Memory: Non-volatile Memory Storing 2000 Audit Events
Software: Local software client or web hosted option available
Power: Power supplied by the key, no hard wiring required
Sizes and Options:
Single Cylinder, 1 1/8 inch faceplate, 2 3/8 inch backset
Single Cylinder, 1 1/8 inch: faceplate, 2 3/4 inch backset
Single Cylinder, 1 inch faceplate, 2 3/8 inch backset
Single Cylinder, 1 inch faceplate, 2 3/4 inch backset
Single cylinder, drive in front, 2 3/8 inch backset
Single cylinder, Drive in front, 2 3/4 inch backset
Single Cylinder, Less Bolt
Weather Resistant: May be used in indoor or outdoor applications
Physical Security: Drill and Tamper Resistant
Lockout: Lost or Stolen keys can be blacklisted so they will not function
Warranty: Medeco® warrants Medeco Logic products to be free of defects in material and/or workmanship for a period of two (2) years from date of original purchase
Technical Information: Eight (8) different finishes provide an extremely close color match with existing hardware
Deadbolt Lock Benefits:
Solid brass colar spins under pressure to prevent wrench attacks
Large thumbturn provides ease of use by physically challenged individuals.
Steel shroud over bolt protects against “ice pick” type attacks
High security strike plate has a special box design with 2 inch screws that anchor the strike directly to the building structure behind the frame, preventing “kick-in” type attacks
Hardened steel bolt and bolt throwing mechanism are surrounded by a heavy-gauge tubular steel housing for maximum resistance to crowbar attacks
Solid brass design is secured with high-tensile steel mounting bolts for maximum resistance against hammer and prying attacks
